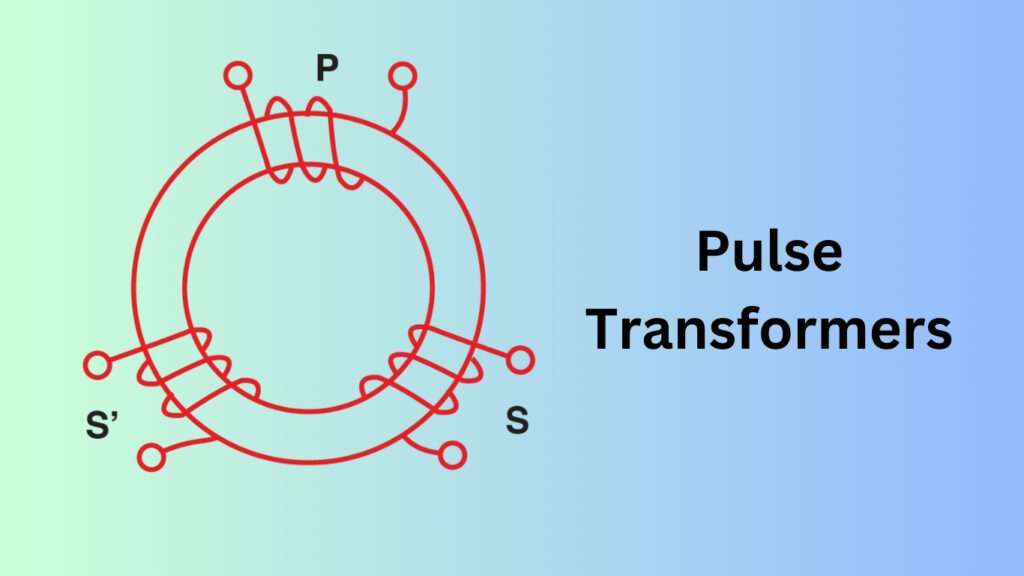

Introduction to Pulse Transformers
As the name implies, Pulse transformers are electrical parts, which serve the exclusive function of transferring electrical pulses in circuits. However, this purpose differs from that of the traditional transformers which are designed for constant AC signals as case of pulse transformers which are meant for rapid switching of signals and high frequency pulses with three dimensional integration. Their structure is such that they operate with very little disturbance and with exceptional clarity of purpose making them vital components in IVRS among other electronic devices.
What is a Pulse Transformer?
A pulse transformer is a specialized transformer designed to transmit electrical pulses with minimal distortion while providing electrical isolation between circuits. It is optimized for high-frequency and short-duration pulse applications, commonly used in digital logic circuits, communication systems, and power electronics. Constructed with low-loss magnetic cores like ferrite, it minimizes leakage inductance and parasitic capacitance to maintain signal integrity. Pulse transformers are widely used for triggering power semiconductors like thyristors and IGBTs, providing isolation in communication interfaces, and ensuring precise timing in radar and switching power supplies.
Understanding How the Pulse Transformers Work in Electronics
It is within this context that pulse transformers become quite critical in today’s electronics where they assist in the professional and timely transfer of signals. More so, pulse transformers are present in most intricacies of electronic systems in digital circuits, communication and power electronics; Device-isolators work similarly isolating two different pulses or two circuit stages. The circuits pound this ability to the circuits particularly where the signals and power along with the frequencies are likely to bring in increased noise in other components circuitry.
Why Pulse Transformers are Important:
- High-Frequency Operation: The other important feature of pulse transformers is their capacity to operate effectively at high frequencies usually in the MHz and GHz range. This feature is critical for example in high data rate applications such as data transmission and high speed digital systems.
- Pulse Shaping: It was also possible to shape the pulse signal so that when it comes out, the out coming signal still correspond to the input signal. This is important in non-linear devices especially in digital applications where the right timing is very essential.
- Isolation: It is achieved through means of pulse transformers which provides electrical isolation between circuits. This also aids in the protection of sensitive parts from any high ranges of voltages and noise. Such isolation is important for the even functioning of the system as well as avoiding losses.
- Low Distortion: Output pulse should reproduce the original input pulse with respect to both, wave shape and time but this low distortion is ensured by the high-quality pulse transformers.
Applications of Pulse Transformers
- Communication Systems: For transformers in communication systems, pulse transformers are utilized in the transmission mode over long distances with minimal signal loss and distortion. These are used in systems like telephone networks, satellite communications, and fiber optics.
- Digital Circuits: They are confinements in digital electronics and are used in transmission of clock signals, data pulses and control signals as clocked pulses. Operating promptly and shaping these pulses makes sure that the functioning of digital circuits is effective and dependable.
- Power Electronics: In power electronics, pulse transformers are utilized in other uses like switch mode power supply (SMPS) and circuits involving pulse width modulation (PWM). They assist in the management of the high power pulses and the effective conversion of power.
- Signal Isolation: Similarly, pulse transformers are also practically used to isolate signal lines from one another and within measurement and control systems. This isolation also shields delicate devices from electrical interferences and ground loops.
Advantages of Using Pulse Transformers
- Improved Signal Quality: Pulse transformers make it such that the signals which are transmitted do not get distorted in any way thus preserving the good nature of the original pulse. This is very important in situations where vectoral timing or signal accuracy is critical.
- Increased System Security: As pulse transformers offer electrical containment, they assist in preventing the destructive effects of voltage transients and noise within electronic devices. This in terms improves the system’s reliability and useful life.
- Reduced Electromagnetic Interference (EMI): Pulse transformers can assist in minimizing the EMI problem by separating circuit stages from one another so that none of them disrupts the signal being sent out. This feature is significant when dealing with highly vulnerable electrical devices.
- Applicability: The pulse transformers when attempting to make are made in a number of shapes and dimensions allowing them to be used in many activities. Their flexibility ensures that they can adapt to the needs of various electronic systems.
Types of Pulse Transformers
Pulse transformers are one of the many categories of transformers which serve to transmit electrical pulses with distortion and efficiency regulation of advanced range. They find wide application in the digital circuitry realms, Telecommunications, Power Electronics and Signal Isolation. Based on their function and design, pulse transformers can be categorized into numerous types.
Signal Pulse Transformers:
Signal pulse transformers are effective in the forwarding of both analog and digital signals with least possible loss and distortion. Ethernet transformers and telecom line transformers are types of pulse transformers that serve a significant function in the Telecommunications and Networking industry. Their main function is to ensure signal integrity while preventing interference and facilitating efficient long distance data transmission.

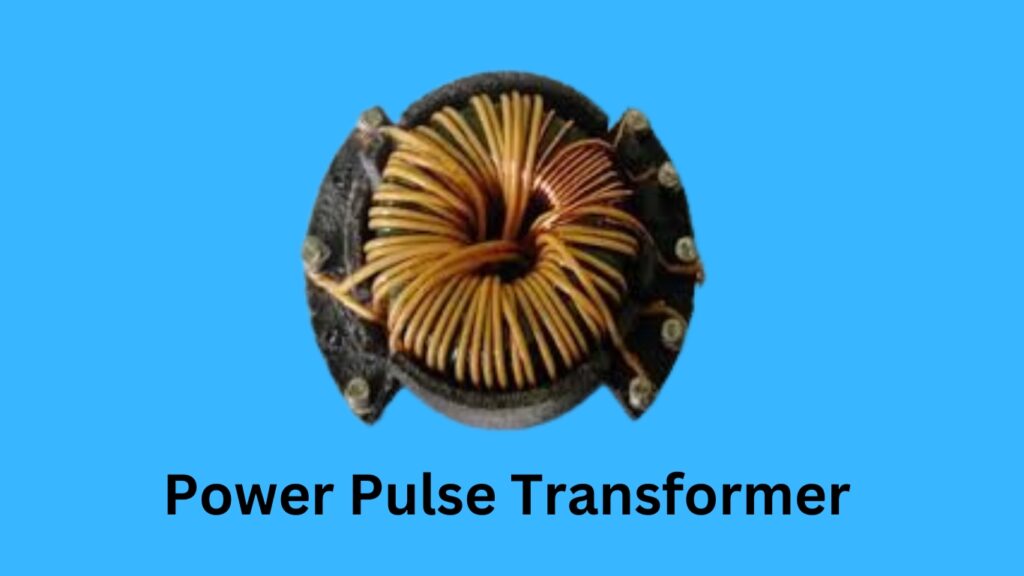

Power Pulse Transformers:
In handling high energy pulses with over the top efficiency, power pulse transformers are the best choice. These are found in Switching Power Supplied with Inverters where energy loss could cause problems. Fly back and forward mode transformers are these types of transformers that enable energization and voltage transformation while ensuring electrical isolation between circuits.

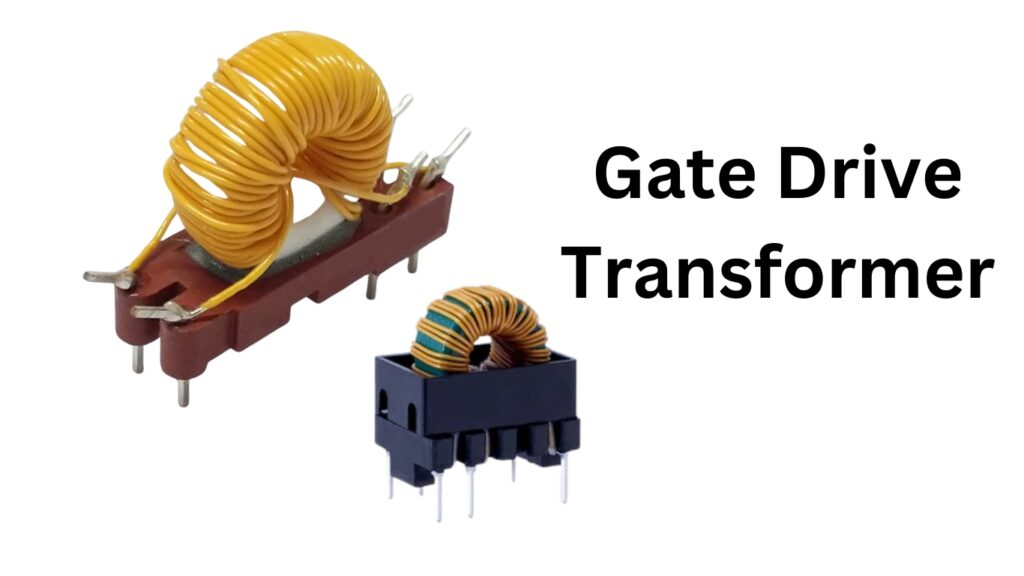

Gate Drive Transformers:
As the name implies, gate drive transformers supply power and electrical isolation to the gates of power semiconductor devices like MOSFETs and IGBTs. Moreover, they are critical to the precision and efficiency in the power signals in motor drives, putters, inverters, and switched mode power supplies. Also, these transformers have been constructed for high frequency operation, low leakage inductance and high insulation resistance.

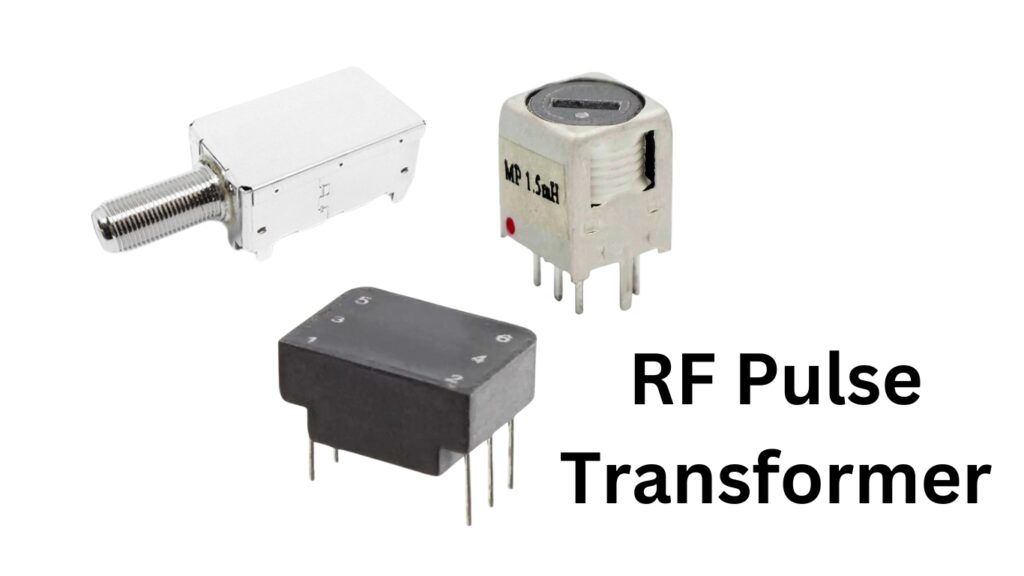

RF Pulse Transformers:
This type of RF pulse transformers are used in high frequency applications primarily for impedance matching and signal coupling. These transformers are very important components in RF communications, equipment’s, radar system, and broadcasting. They assist in efficient transmission of signals for wide ranges of frequencies with minimal losses.
Isolation Pulse Transformers:
For electrical circuits that require providing a certain level of ground loop isolation to avoid noise interference, these isolation pulse transformers are used. Also, they can be applied to medial apparatus as well as industrial control and telecommunication devices where electrical safety needed along with minimum noise. This type of transformer also enables protection from high voltage surge and electromagnetic interference to sensitive electronic components.
Trigger Pulse Transformers:
Trigger pulse transformers are designed to deliver sharp high voltage pulse output for triggering devices like thyristors or silicon-controlled rectifiers (SCR). These transformers are in frequent use in pulse circuits, ignition systems and lasers. Their responsibility is supplying required sharp and powerful pulses for the proper functioning of high-power switching devices.
Every type of pulse transformer is optimized in its respect to particular electrical and mechanical performance criteria in order to ensure their effective use in diverse industries and applications. Factors such as offering isolation, being efficient, precise or a combination of any or all practiced in modern electronic systems make these components indispensable.
Difference Between Pulse Transformer and Conventional Power Transformer
| Feature | Pulse Transformer | Conventional Power Transformer |
| Function | Transmits electrical pulses with minimal distortion, mainly used in signal transmission and gate drive circuits. | Transfers electrical energy for power distribution and voltage conversion. |
| Operating Frequency | High frequencies (kHz to MHz range) | Low frequencies (typically 50Hz or 60Hz) |
| Core Material | Ferrite core (low eddy current losses at high frequencies) | Laminated iron or silicon steel core (minimizes eddy current losses at low frequencies) |
| Size & Weight | Small and lightweight, used in compact electronic circuits | Larger and heavier, used in power distribution |
| Power Handling | Handles low power but can generate high-voltage pulses for short durations | Designed for continuous high-power handling |
| Waveform Type | Sharp, fast-rising pulses with minimal distortion | Sinusoidal AC waveforms for steady power transmission |
| Application | Used in gate drive circuits, signal transmission, telecommunications, and high-frequency switching | Used in power grids, industrial power systems, and household appliances |
| Efficiency Focus | Ensures accurate pulse transmission with minimal rise time and distortion | Ensures high efficiency in continuous power transmission |
Picking the Right Pulse Transformer
In electronic circuitry, as well as in power and communication systems, the selection of an appropriate pulse transformer is vital for optimal performance. There are several considerations when choosing a pulse transformer that caters to the specific needs of an application.
- Operating Frequency: The frequency range of the transformer must cater to those of the application in question. Pulse transformers have high operating frequencies, in kHz to MHz range. Selecting a transformer with an appropriate frequency response minimizes distortion and facilitates effective pulse reproduction.
- Voltage and Current Ratings: The transformer must be able to tolerate certain input and output voltages without breakdown. An appropriate turns ratio for the transformer needs to be selected with consideration to the desired output voltage. The current levels which the transformer needs to take on for effective power delivery must also be considered.
- Insulation and Isolation: For electrically isolated applications such as gate drive circuits and medical devices, the transformer must exhibit sufficient insulation strength to tolerate high voltages. Ample safety and reliability dielectrically strength and creepage distance must be provided.
- Core Material and Design: In a ferrite core, the core material takes the biggest part in energy loss minimization and effective performance. The eddy current losses and permeability of ferrite cores are high at high frequencies; thus, they are frequently used in pulse transformers. Besides, the leakage inductance and stray capacitance should be as low as possible for design distortion minimization.
- Rise Time and Bandwidth: A low rise time is required from the transformer when dealing with fast switching applications. For a high bandwidth, a pulse can be transmitted without being delayed or attenuated significantly.
- Load Impedance Matching: To avoid signal reflection and loss the transformer’s impedance needs to be matched with the connected circuit. Mismatch in impedance can lead to energy-efficient transfer characteristics coupled with signal distortion.
- Temperature Stability and Power Dissipation: The transformer should withstand the system’s operating temperature range. Excessive heat can degrade the performance; thus, it is ideal to have a design with good thermal stability and adequate heat dissipation.
- Physical Size and Mounting: Depending on the application, size constraints may be a factor. Compact transformers are essential for PCB-mounted circuits, whereas larger transformers may be required for high-power applications.
Choosing the optimal pulse transformer for any particular application will be efficient, reliable, and effective in the long-term if these parameters are evaluated carefully.
Conclusion
As for pulse transformers, being one of the most important components in electronics, they facilitate high-frequency response, proper pulse shaping, and good isolation. Their aspects encompass communication systems, digital circuits, and power electronics, thus contributing to better integrity of signals and reliability of the system. There is no doubt, however, that pulse transformers are specialized devices that have certain specific properties and advantages. Examples like this one show that as technology evolves, so do devices and examples pulse transformers will always be in the core of any new systems advancing its new application.
Visit our latest Blog about (AC vs DC Motors: Critical Differences To know In) Any question regarding to this article please contact us.
Frequently Asked Questions (FAQs) on Pulse Transformers:
Q1.What is a pulse transformer used for?
A pulse transformer is used to electrically isolate two circuits while transmitting electrical pulses with minimal distortion. Common uses include communication signal transmission, thyristor and IGBT triggering, as well as timing tasks for radars and switching power supplies.
Q2.How does a pulse transformer differ from a regular transformer?
Unlike regular transformers which accommodate continuous AC power, pulse transformers are constructed for short, high frequency, repetitive power pulses. Regular transformers utilize continuous power transmission, while pulse transformers utilize short duration and supersonic frequency transmission. Pulse transformers contain low-loss magnetic cores, minimal leakage inductance, and reduced parasitic capacitance.
Q3.What are the key design features of a pulse transformer?
Primary and secondary windings of a pulse transformer must have electrical isolation. Additional requirements include high frequency operation, low inductive and core losses, leakage inductance, low leakage inductance, as well as less than 0.05 dielectric loss.
Q4.What materials are used in pulse transformer cores?
Highly permeable materials that ensure minimum energy loss are used for pulse transformer cores. These include ferrite, amorphous, and powdered iron. Using low permeable materials increases the likelihood of limbs warping under pulse magnets, hence they must be avoided.
Q5.How do you select a pulse transformer for a specific application?
Selection depends on factors such as voltage and current requirements, frequency range, rise time of pulses, turns ratio, isolation voltage, and power-handling capacity. The impedance and signal properties of the circuit which the transformer is going to be used in, need to be adapted as well.
Q6.What are some common applications of pulse transformers?
They are widely used in digital circuits, telecommunication networks, radar systems, medical equipment, industrial automation, and power electronics for signal isolation, mismatch impedance, and gate drive applications.
Q7.How does a pulse transformer provide electrical isolation?
This particular type of transformer is capable of protecting circuits from being damaged by voltage spikes and interference. This is due to the fact that the windings are separated and encapsulated by a form of insulation. This makes it impossible to connect them directly to each other electrically, but, allow them to share signals magnetically.
Q8.What is the typical frequency range of a pulse transformer?
Depending on the design and application specifications, it operates from several Megahertz (MHZ) to a few Kilohertz (KHz).
Q9.Can a pulse transformer be used for power conversion?
Sure. Pulse transformers are regularly employed in the power electronics industry, particularly in the case of switching power supplies and gate drive circuits where rapid and precise pulses control the power semiconductors.
Q10.What are the determinants of pulse transformer efficiency?
The core material, winding configuration, leakage inductance, inter-winding capacitance, and operating frequency all have an effect on efficiency. Materials and design tailored to the application reduce wastage in energy and maximize performance.
Q11.What is the turns ratio in a pulse transformer?
The turns ratio of a pulse transformer is the ratio between the primary coil and secondary coil hence the number of windings in each coil. It sets the level of voltage change as well as impedance matching within the input and output circuits.
Q12.Why are ferrite cores widely employed in pulse transformers?
These cores are perfectly suited for applications where distortion and efficiency need to be maximized as they possess high magnetic permeability and low electrical conductivity which help reduce losses from eddy currents.
Q13.What is leakage inductance’s function in pulse transformers?
Leakage inductance is that part of the magnetic flux which does not link with both windings and therefor causes damage and distortion. Designers try to remove leakage inductance so that signal fidelity and efficiency may be improved.
Q14.In what ways can a pulse transformer minimizes its distortion?
Pulse transformers effectively transmit pulses with precision and moderate ringing, overshoot, and attenuation thanks to high-quality core materials, tightly coupled windings, low leakage inductance designs and other features.
